Clips for K10
Аnchor grips are produced on the basis of spiral-linear wedges for fixing and tensioning of К1010-wire PC Strand

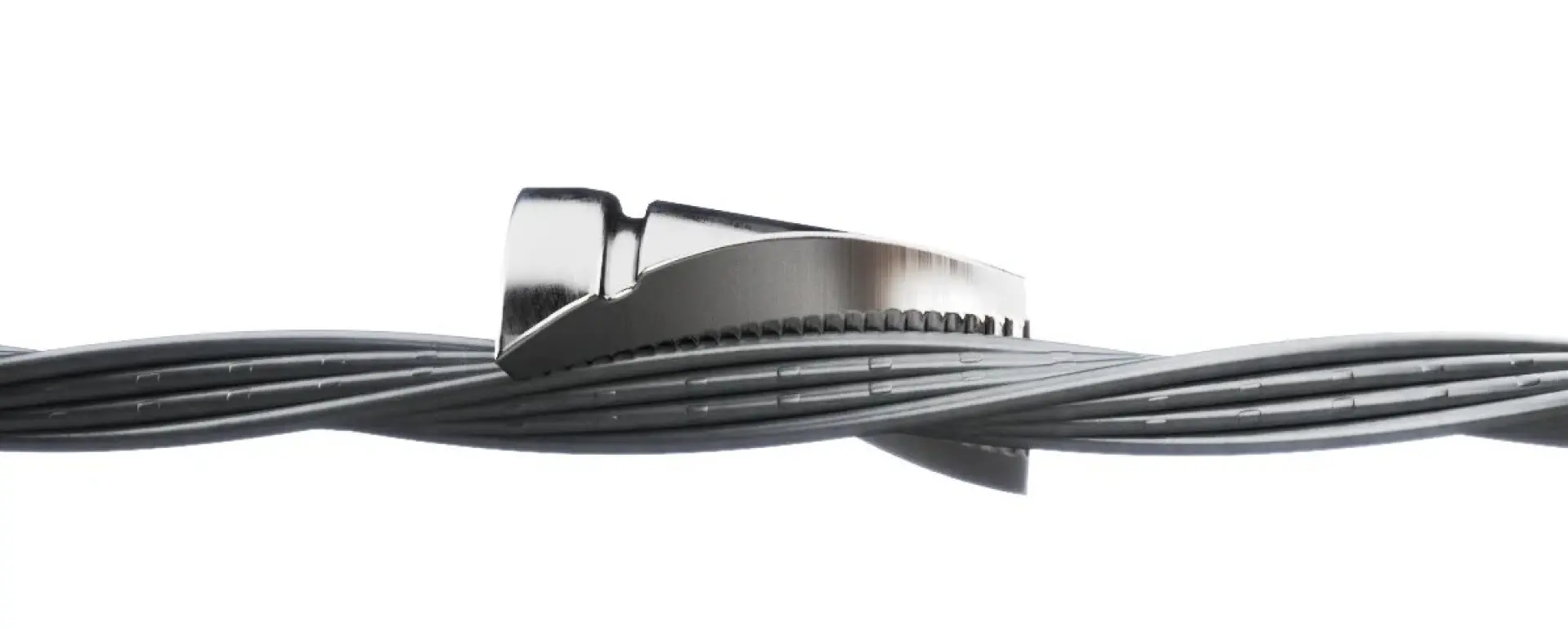

Each wedge is in contact along its entire length with the same four wires that make up the inclined face of the K10 PC Strand.

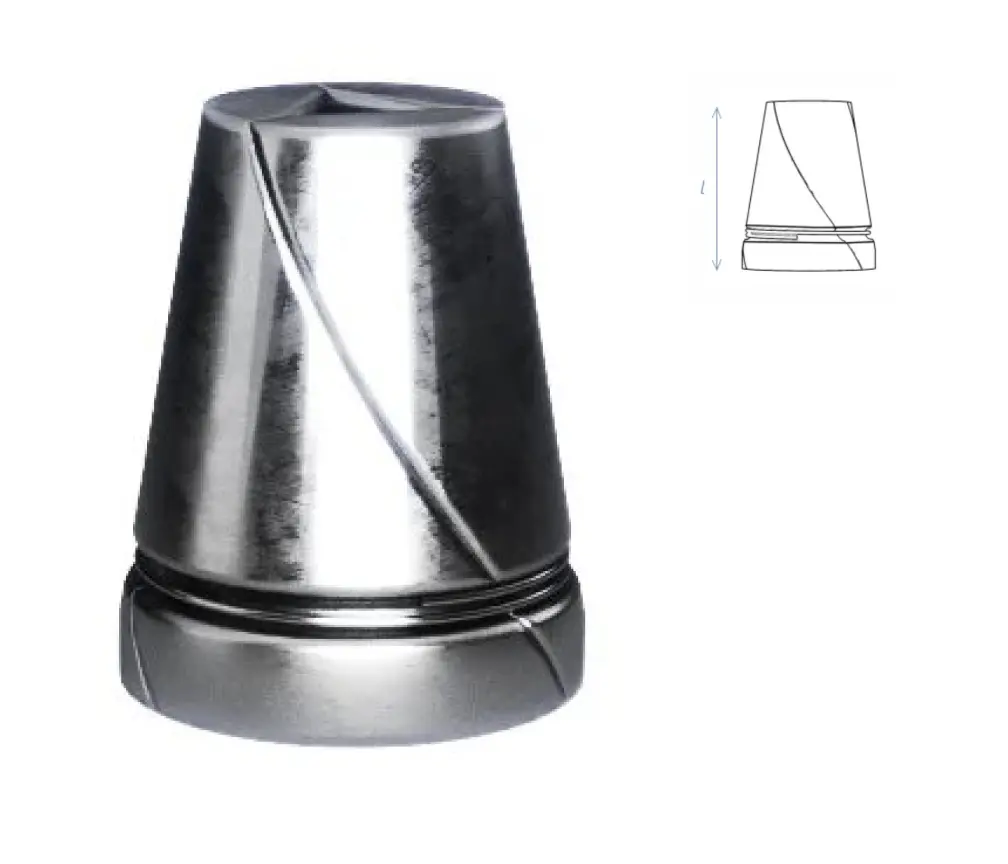

Tension clamp wedges
spiral-linear
The wedges are designed for use in anchor grips with a conventional open and enclosed barrels & couplers
The wedges are produced for maximum workload 150, 300, 500 kN
The wedges are supplied with a set of 3 wedges connected by a spring ring
The table of correspondence of standard sizes
of K10 PC Strands and wedges KSL

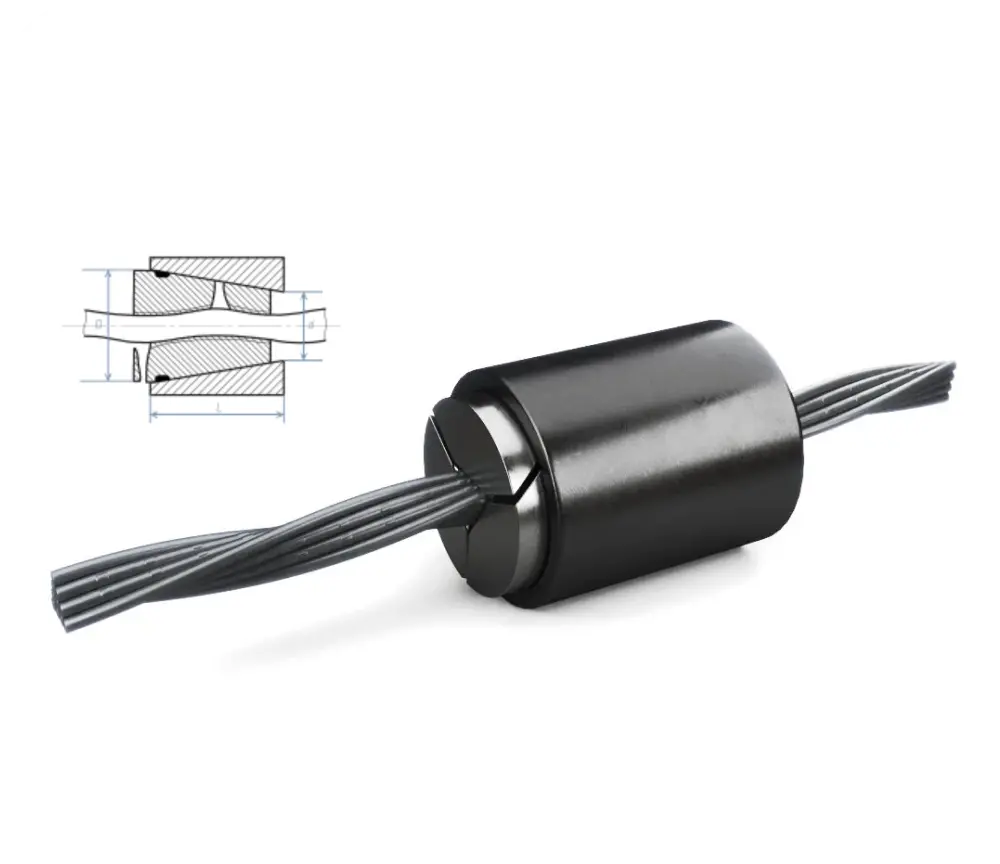

Open barrel anchor grips
Closed spiral-linear wedge anchor grips are designed for tensioning K10 PC Strands
The clamps consist of 3 wedges, a spring and a barrel
The grips are available for a maximum working load of 150, 300, 500 kN
The table of correspondence of standard sizes
of K10 strands and anchor grips

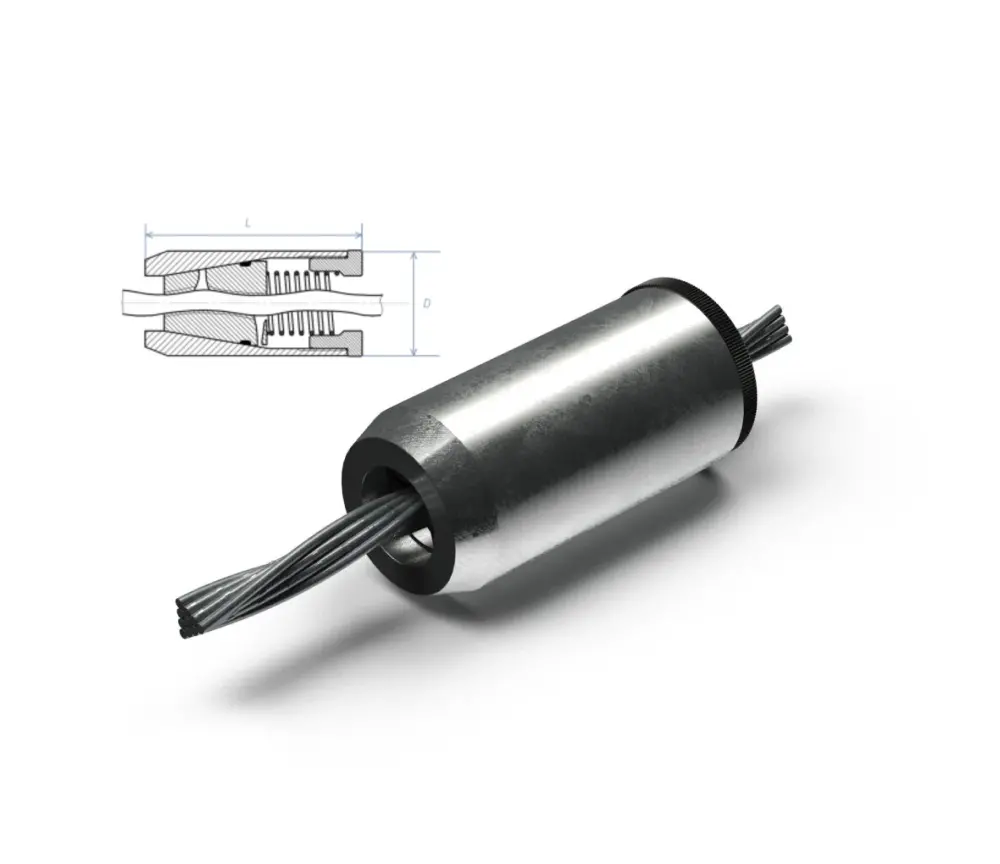

Enclosed barrel anchor grips
Enclosed spiral-linear wedge anchor grips are designed for tensioning K10 PC Strands
The anchor grip consist of 3 wedges, a spring, a barrel with a thread and a nut
The grips are available for a maximum working load of 150, 300, 500 kN
Table of correspondence of the standard sizes
of the К10 strand and enclosed grips

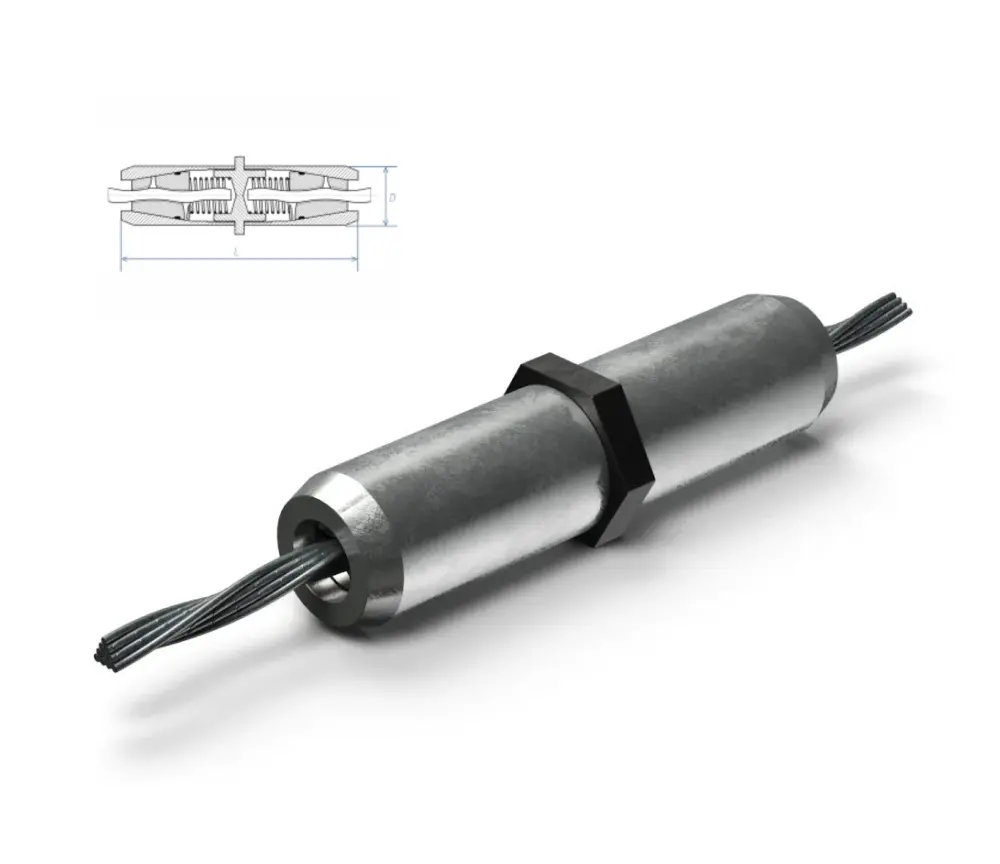

Connecting couplers
Сonnecting wedge spiral-linear coupling grips are designed to connect the ends of К10 PC Strands
The couplers consist of two sets of wedges, springs, barrels and one nut
The couplers are available for a maximum working load of 150, 300, 500 kN
Table of conformity of the standard sizes
of the K10 strand and the couplers

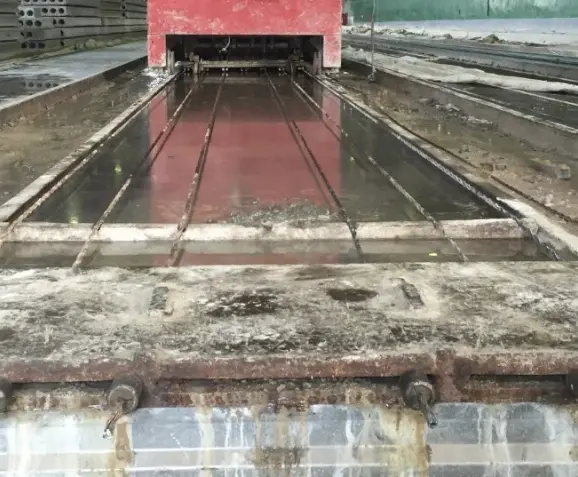

All batches of clamps are tested for maximum workload
Эксплуатационный ресурс клиновых зажимов зависит от усиления натяжения и степени очистки после применения.
Wedges can be applied In enclosed grips from 50 to 100 times, provided that the wedges are properly cleaned after each use.
